Pan & Tilt Positioners
Pan & Tilt Positioners
We provide a reliable and durable platforms suitable for a broad range of markets and uses. Our Pan and Tilt Positioner are designed with the precision and accuracy required by the most demanding applications.
The RPT ( Pan and Tilt) Positioner is improved with an enhanced electronics package offering new advantages to mission critical applications. Our pan tilt positioner solutions are also used for searchlight, antenna and other applications.
We custom design pan tilt units and equipment in general and program custom specified firmware. Most of our pan tilt heads can be customized to specific applications and specifications.

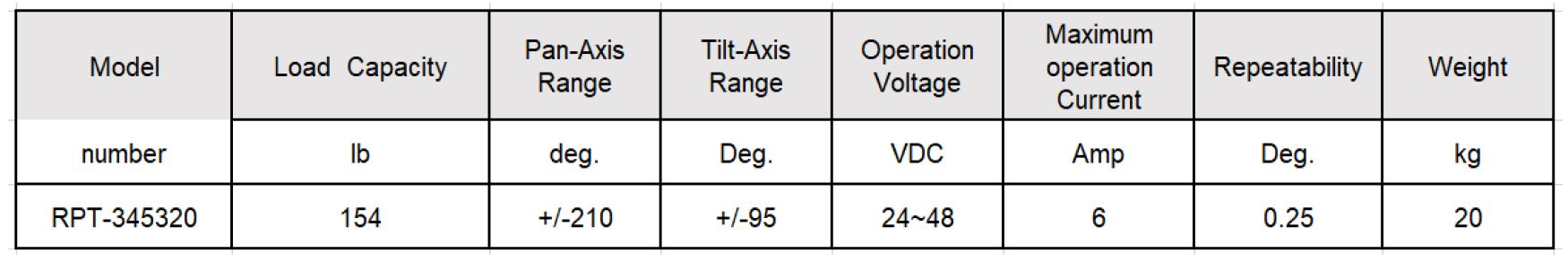

Input Power：24~48 VDC
Payload capacity：up to 154 1b (70KG)
Load capacity：130 1b- ft (18kgf-m) maximum
Weight：Pan and Tilt < 20 kgf ; control box <5.5kgf
Operating Temperature：-10°C~+60°C
Product properties:
1) Reliable Mechanical design：Built-in biaxial motor control and drive circuit with the following functions：
* UART RX and TX Communication Joints (After External Conversion Module)into RS232 communication format)
* ADC chips capture 8 sets of analog signals
* Temperature sensing chips included
* Each brushless motor building and drive circuit contains 2 sets of phase-change sensing modules
2) Pan range :+225°,Tilt range : +92.5°
3) Max. Pan speed : 8°/sec ; Max. Tilt speed : 4.5°/sec ; speed adjustable
4) Position self locking.
5) Mil spec.connectors.
